Fiber Optical Termination Box 24 Core Fiber Optic Patch Panel For Mini Tube Type PLC Splitter 1*16

Fiber Optical Termination Box 24 Core For Mini Tube Type PLC Splitter 1*16

The fiber optic terminal box is suitable for optical fiber splitting/splicing using. It is reasonable design for fiber arrangement, and its bend radius is more than 30mm.

Optical fiber termination box is used as a termination point for the feeder cable to connector with drop cable. It has the function of mechanical splice, fusion splice, light splitting, wiring distributions. The fiber terminal box provides solid protection and management for the FTTx network building​, suitable for indoor, basement, room and building's outer walls applications.

Features

Can accommodate 1x2, 1x4,1x8, 1x16 PLC splitter.

Rainfall resistant, IP65 outdoor using.

Material: ABS plastic.

Can load 12pcs LC, FC, ST, SC … adapters.

Wall mounting and pole mounting application.

2pcs cable entry ports with M20 cable gland (Max. cable diameter 12mm)

12pcs exit ports for FTTH drop cable.

Application

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks, Wide Area Networks

Specifications

Working Temperature: -40℃～+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)

Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box, Fiber Terminal Box

cable termination box

ftth termination box

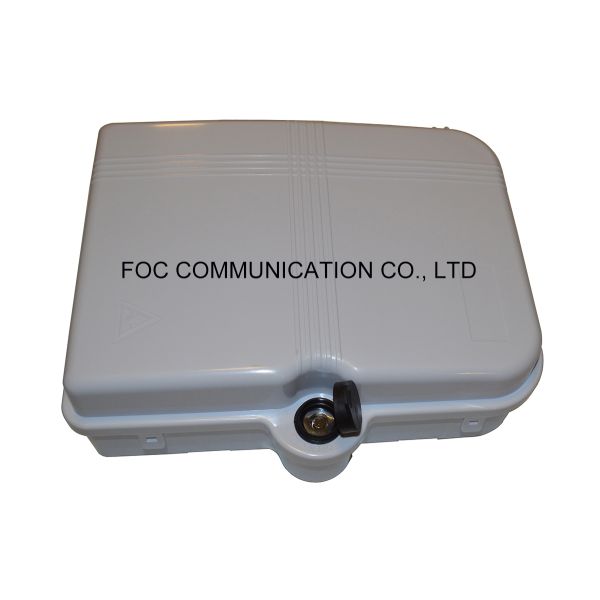

Fiber Optical Termination Box 24 Core Fiber Optic Patch Panel For Mini Tube Type PLC Splitter 1*16 Images
